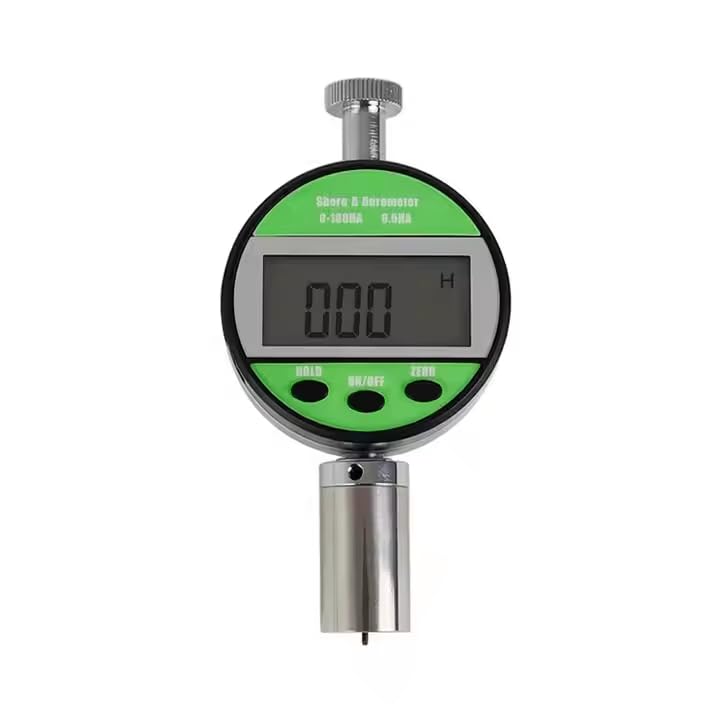

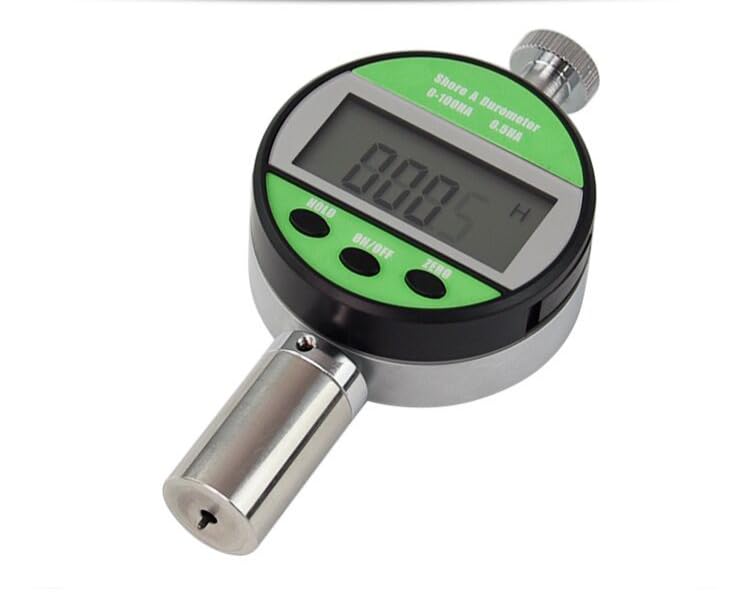

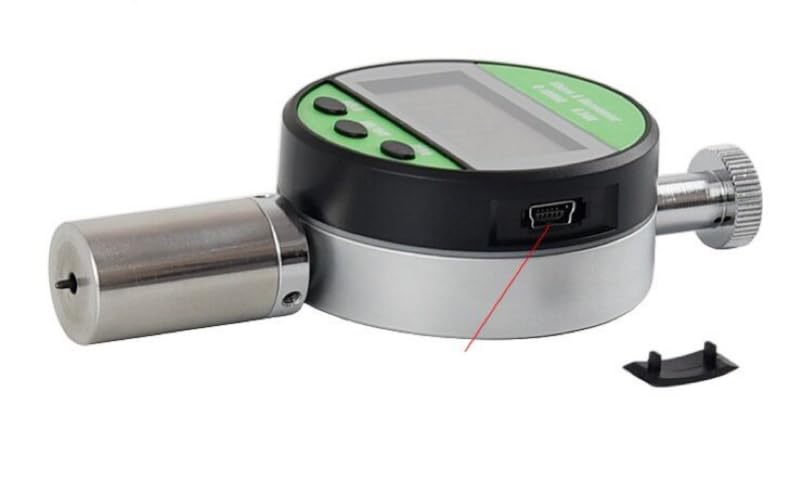

LX-A-Y Shore Hardness Tester Digital Rubber Hardness Tester Measuring Range 0-100°
Products Introduction:
Shore Hardness Tester is an apparatus to measure vulcanized rubber and plastic products. It has three models of Type A (LX-A), Type C (LX-C) and Type D (LX-D). Type A (LX-A) and Type D (LX-D) respectively are applicable to the testing of low and medium hardness, and high-hardness materials. Type C (LX-C) applies to the testing of microporous material which is used to make shoes, with compression rate 50 percent, stress 0.049 MPa or above. This kind of material is made of rubber plastic and has blister in plastic.
Technical Parameter:
Types
Type A
Type C
Type D
Model
LX-A-Y
LX-C-Y
LX-D-Y
Display Way
Digital Display Type
Measuring Range
0-100°
Measuring Error
Within 20-90°, The Error Is ≤±1°
Resolution
0.1°
End pressure of Pressure Head
0.55N-8.05N
0.55N-8.05N
0-44.5N
Pressure Needle Range
0-2.5 mm
Brand: Graigar
Features:
Shore Hardness Tester is an apparatus to measure vulcanized rubber and plastic products.
It has three models of Type A (LX-A), Type C (LX-C) and Type D (LX-D).
Type A (LX-A) and Type D (LX-D) respectively are applicable to the testing of low and medium hardness, and high-hardness materials.
Type C (LX-C) applies to the testing of microporous material which is used to make shoes, with compression rate 50 percent, stress 0.049 MPa or above.
This kind of material is made of rubber plastic and has blister in plastic.
