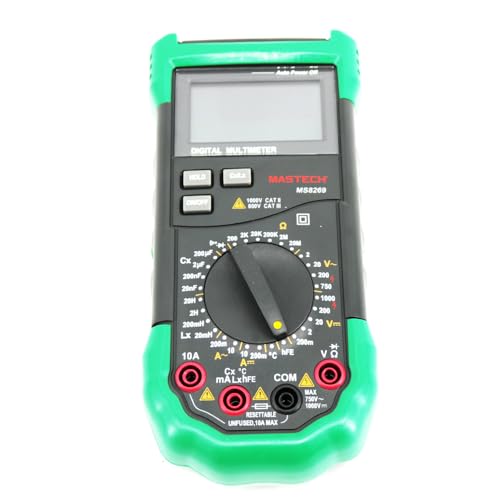

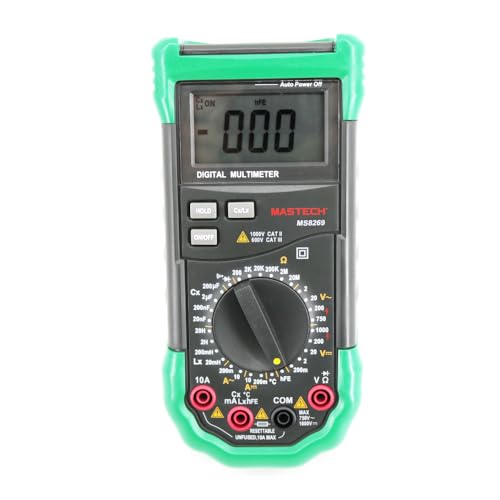

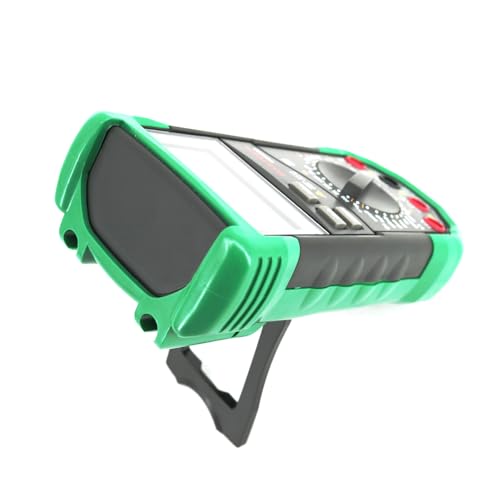

Mastech MS8269 Digital Multimeter AC/DC Voltage Current Resistance Capacitance Frequency Inductance Temperture Meter

MS8269 LCR Inductance LC Meter Multimeter

Features:

• Conforms to international standards IEC1010-1 CAT II 1000V & CAT III 600V
• Maximum display: 1999
• Data hold
• Auto power off
• All ranges fused
• Built-in resettable fuse protection

Specifications:

• DCV:200m/2V/20V/200V±0.5%, 1000V±0.8%
• ACV:2V/20V/200V±0.8%, 750V±1.2%
• Resisitance:200/2k/20k/200k/2M?±0.8%, 20M?±1.0%,
• DCA:20mA±0.8%, 200mA±1.5%, 10A±2.0%
• ACA:2mA±1.0%, 200mA±1.8%, 10A±3.0%
• Capacitance:20n/200n/2?/20?F/200?F±4.0%
• Temperature:-20?~1000?
• Inductance:20mH/200mH/2H/20H ±3.0%
• hFE: 1~1000
• Continuity
• Diode test
• Power source:6F22(9V)×1
• Dimensions:195×92×55mm
• Weight: approximately 200g (batteries included)

package included:

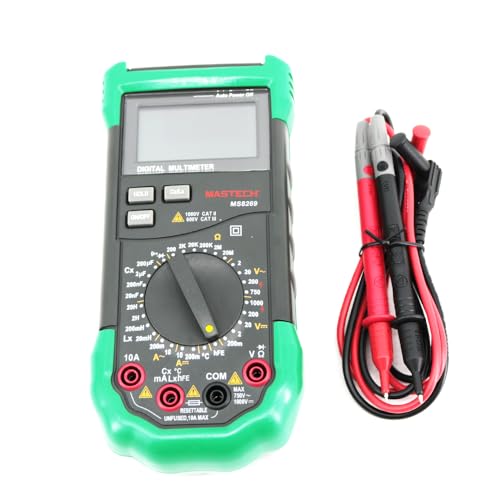

• Mastech MS8269 Digital multimeter 9V battery (installed) Test leads Multi-functional socket adapter

Brand: Graigar

Color: Green

Features:

• Display 2000 counts
• Auto Power Off
• Transistor hFE 0~1000
• Diode Open Voltage 3.0V
• Continuity Buzzer <70Ohm
• Data Hold
• Low Battery Display

model number: MS8269
